Between 1st August to 1st January please note that this is our busy period and item will take at least 2-3 weeks to be dispatched
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

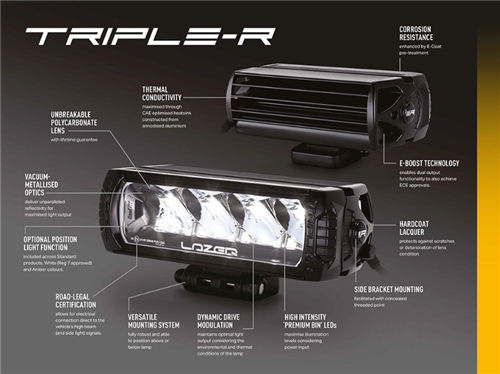

The T5 Lazer Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED Spotlights, which come available in Standard (with optional integrated white or amber Position/Side Light function), or Elite grade, which boasts increased distance illumination and left/right spread of light. All lights are fully ECE approved for connecting directly into the vehicle’s electrical system, and provide for exceptional high beam driving light performance.
What’s included:
– x2 Triple-R 750 Elite High Performance LED Spotlights

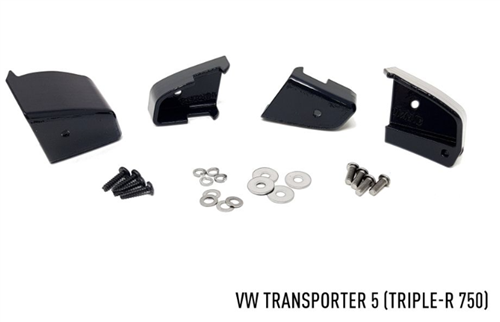

– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)

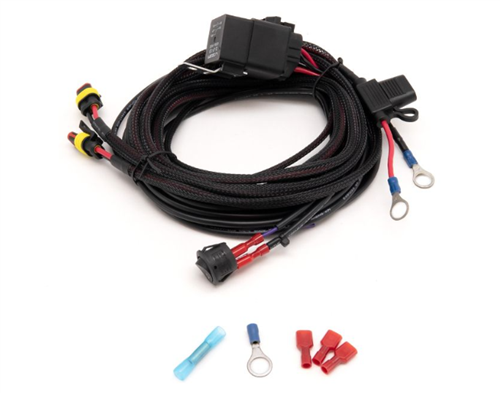

– x1 Two-Lamp Wiring Kit
Product Features
Bespoke mounting bracket kit for Lazer LED Spotlight installation

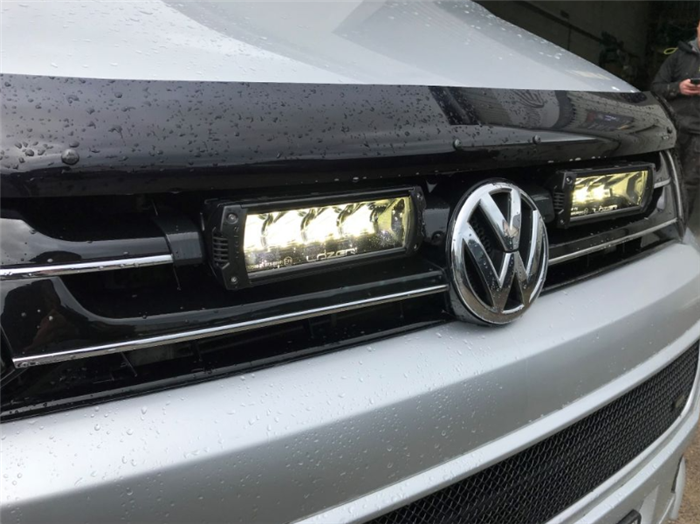

Custom fit for VW Transporter 5 (2010+)
Designed for use with Triple-R 750 High Performance LED Spotlights
Added option for white or amber position/side light function (Standard model only)
Kits include: 4x brackets, cutting guides, and fasteners
Made from high strength, UV-stable, ASA material
5-year warranty
Made in Britain
Technical Specification
2x
Triple-R
750 Wide |
2x
Triple-R 750 |
2x
Triple-R
750 Elite
(E-Boost Mode) |
| Voltage Range (DC) |
10-32V |
10-32V |
10-32V |
| LED Life |
50,000 hrs |
50,000 hrs |
50,000 hrs |
| Weight |
2 kg |
2 kg |
2 kg |
| HIGH BEAM FUNCTION |
|
|
|
| Total Luminous Flux |
9240 Lm |
9240 Lm |
10136 Lm |
| Total Driver ‘FOV’ Flux † |
5266 Lm |
5572 Lm |
6680 Lm |
| Colour Temperature |
5000K |
5000K |
5000K |
| Number of High Output LEDs |
2 x 4 |
2 x 4 |
2 x 4 |
| Power Consumption |
88 Watts |
88 Watts |
104 Watts |
| Current Draw (at 14.4V) |
6.2 Amps |
6.2 Amps |
7.2 Amps |
| CERTIFICATION |
|
|
|
| High Beam |
ECE R149 |
ECE R112 |
ECE R112 |
| ECE Reference |
20 x2 |
35 x2 |
N/A
(12.5 x2 – E-Mark Mode) |
| Position Light (White only) |
N/A |
ECE R7 |
N/A |

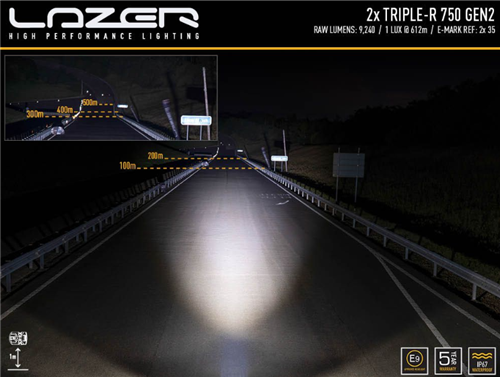

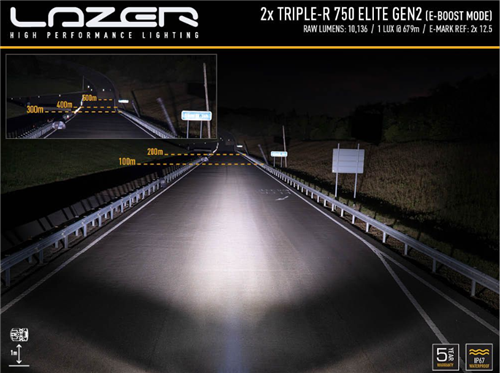

| PHOTOMETRIC DATA |
|
|
|
| Horizontal Beam Angle |
40o |
19° |
42° |
| 0.25 lx Line |
829m |
1225m |
1358m |
| 0.5 lx Line |
587m |
866m |
960m |
| 1 lx Line |
415m |
612m |
679m |
| 3 lx Line |
239m |
354m |
392m |
