For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Toyota Hilux Invincible X Grille Integration Kit is carefully engineered and optimised for use with ST4 Evolution High Performance LED Spotlights. Also available is Toyota Hilux Grille Kit with Triple-R 750 for lower spec vehicles.
What’s included:
– x2 ST4 Evolution High Performance LED Spotlights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit
Product Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation

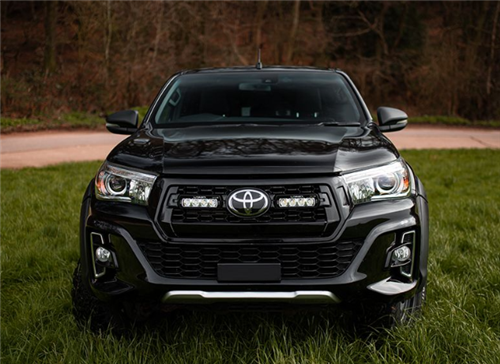

Custom fit for Toyota Hilux Invincible X (or country specific equivalent spec)

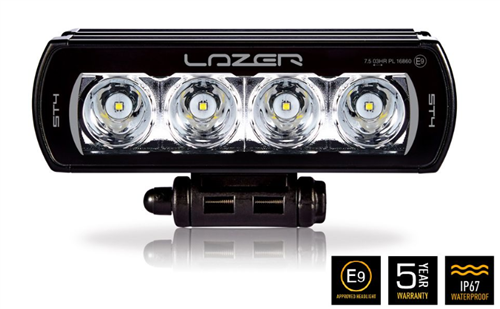

For use with ST4 Evolution High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
Technical Specification
|
x2 ST4
Evolution |
| Voltage Range |
10-32V |
| LED Life |
50,000 hours |
| Weight |
1340g |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
8272 Lm |
| Total Driver ‘FOV’ Flux † |
4980 Lm |
| Colour Temperature |
5000k |
| Number of High Output LEDs |
2 x 4 |
| Power Consumption |
94 Watts |
| Current Draw (at 14.4V) |
6.6 Amps |
| CERTIFICATION |
|
| High Beam |
ECE R112 |
| E-Mark Ref |
10 x2 |

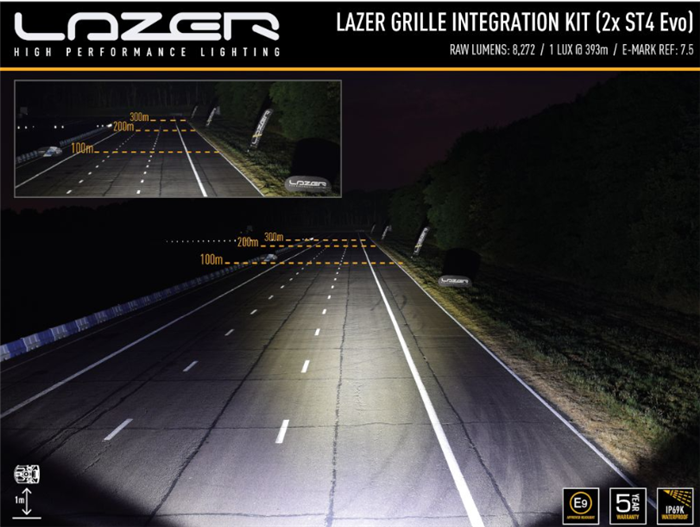

| PHOTOMETRIC DATA |
|
| Horizontal Beam Angle |
40° |
| 0.25 lx Line |
786m |
| 0.5 lx Line |
555m |
| 1 lx Line |
393m |
| 3 lx Line |
227m |
|
