Description
Between 1st August to 1st January please note that this is our busy period and item will take at least 2-3 weeks to be dispatched

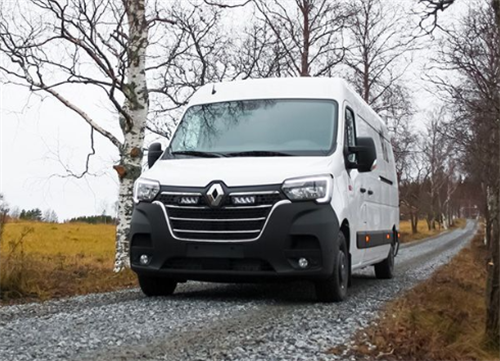

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED driving lights, flush mounted within the front grille of the Renault Master.
For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
What’s included:
– x2 Triple-R 750 High Performance LED Lights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit
Product Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Renault Master (2020-2023)
Designed for use with Triple-R 750 High Performance LED driving lights
Kit also includes custom-fit mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Includes anti-theft fasteners
Installation completed with grille left in-situ on vehicle (cutting guides included)
Fully road-legal
5-year warranty
Made in Britain
Technical Specification
2x
Triple-R
750 Wide |
2x
Triple-R 750 |
2x
Triple-R
750 Elite
(E-Boost Mode) |
| Voltage Range (DC) |
10-32V |
10-32V |
10-32V |
| LED Life |
50,000 hrs |
50,000 hrs |
50,000 hrs |
| Weight |
2 kg |
2 kg |
2 kg |
| HIGH BEAM FUNCTION |
|
|
|
| Total Luminous Flux |
9240 Lm |
9240 Lm |
10136 Lm |
| Total Driver ‘FOV’ Flux † |
5266 Lm |
5572 Lm |
6680 Lm |
| Colour Temperature |
5000K |
5000K |
5000K |
| Number of High Output LEDs |
2 x 4 |
2 x 4 |
2 x 4 |
| Power Consumption |
88 Watts |
88 Watts |
104 Watts |
| Current Draw (at 14.4V) |
6.2 Amps |
6.2 Amps |
7.2 Amps |
| CERTIFICATION |
|
|
|
| High Beam |
ECE R149 |
ECE R112 |
ECE R112 |
| ECE Reference |
20 x2 |
35 x2 |
N/A
(12.5 x2 – E-Mark Mode) |
| Position Light (White only) |
N/A |
ECE R7 |
N/A |

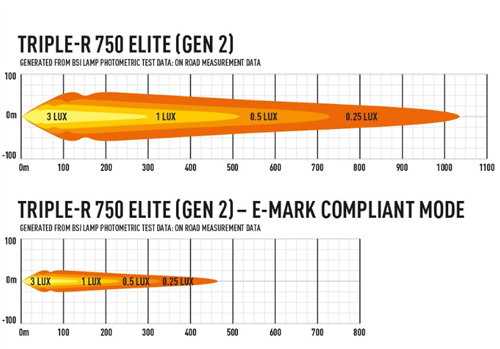

| PHOTOMETRIC DATA |
|
|
|
| Horizontal Beam Angle |
40o |
19° |
42° |
| 0.25 lx Line |
829m |
1225m |
1358m |
| 0.5 lx Line |
587m |
866m |
960m |
| 1 lx Line |
415m |
612m |
679m |
| 3 lx Line |
239m |
354m |
392m |
