Description
For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The RAM 1500 DS Series – Classic (2013+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 Elite Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
What’s Included:

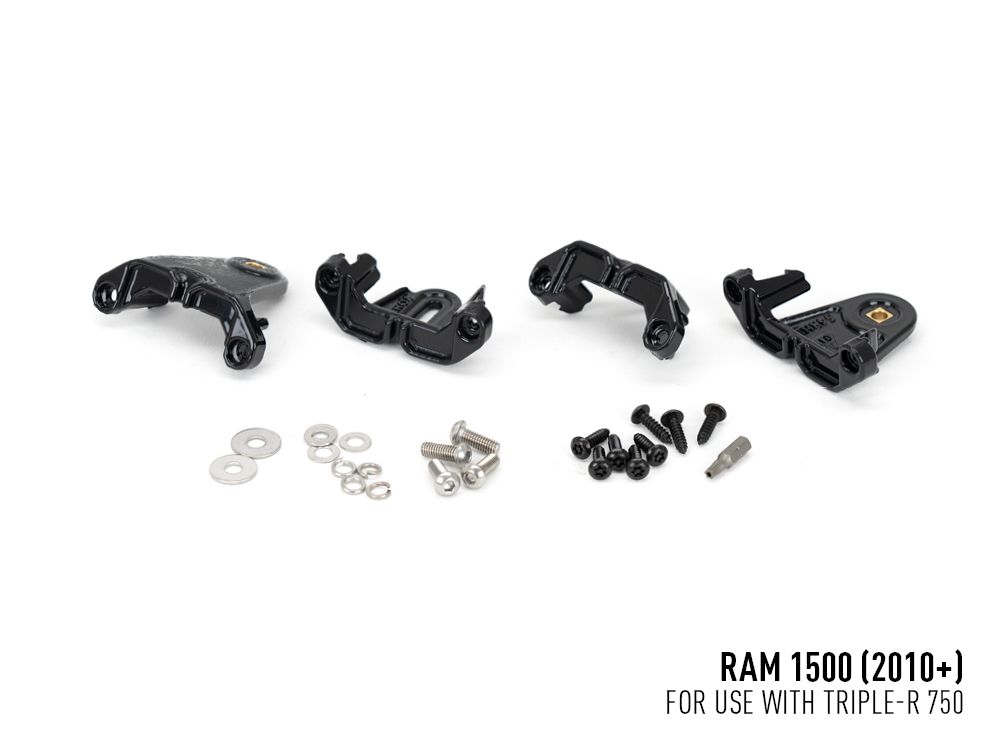

- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 Elite LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
Product Features
Bespoke vehicle integration kit for Lazer LED Driving Light installation
Custom fit for RAM 1500 DS Series – Classic (2013+)
For use with Triple-R 750 Elite Performance LED driving lights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
Technical Specification
2x
Triple-R
750 Wide |
2x
Triple-R 750 |
2x
Triple-R
750 Elite
(E-Boost Mode) |
| Voltage Range (DC) |
10-32V |
10-32V |
10-32V |
| LED Life |
50,000 hrs |
50,000 hrs |
50,000 hrs |
| Weight |
2 kg |
2 kg |
2 kg |
| HIGH BEAM FUNCTION |
|
|
|
| Total Luminous Flux |
9240 Lm |
9240 Lm |
10136 Lm |
| Total Driver ‘FOV’ Flux † |
5266 Lm |
5572 Lm |
6680 Lm |
| Colour Temperature |
5000K |
5000K |
5000K |
| Number of High Output LEDs |
2 x 4 |
2 x 4 |
2 x 4 |
| Power Consumption |
88 Watts |
88 Watts |
104 Watts |
| Current Draw (at 14.4V) |
6.2 Amps |
6.2 Amps |
7.2 Amps |
| CERTIFICATION |
|
|
|
| High Beam |
ECE R149 |
ECE R112 |
ECE R112 |
| ECE Reference |
20 x2 |
35 x2 |
N/A
(12.5 x2 – E-Mark Mode) |
| Position Light (White only) |
N/A |
ECE R7 |
N/A |

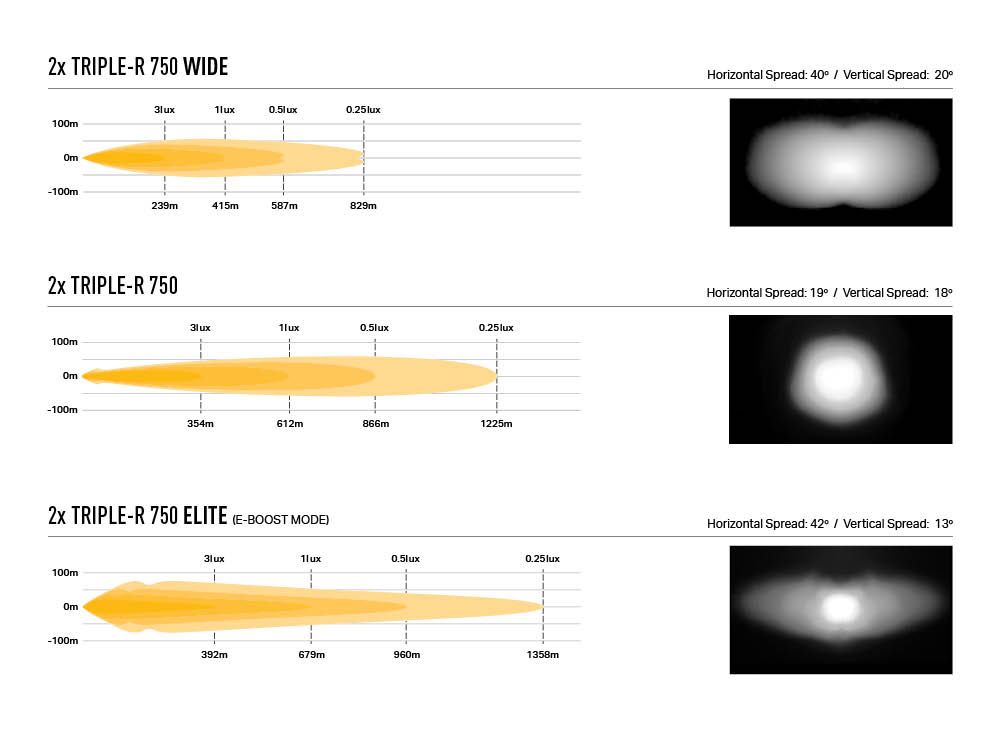

| PHOTOMETRIC DATA |
|
|
|
| Horizontal Beam Angle |
40o |
19° |
42° |
| 0.25 lx Line |
829m |
1225m |
1358m |
| 0.5 lx Line |
587m |
866m |
960m |
| 1 lx Line |
415m |
612m |
679m |
| 3 lx Line |
239m |
354m |
392m |
