Lazer – Mercedes Sprinter (2018-Present) – Grille Mount Kit (includes: 2x Triple-R 750 Wide, 1x Grille Mount Brackets, 1x 2L-LP-120)

Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

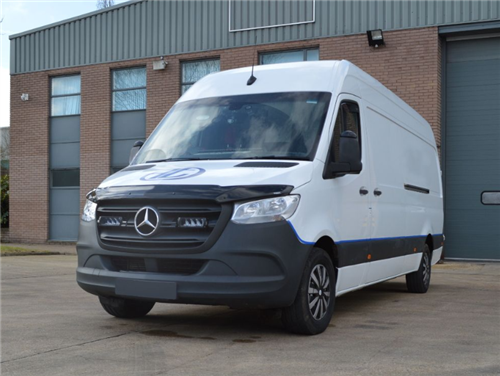

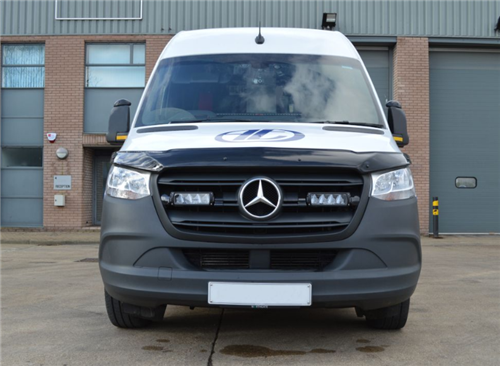

The Mercedes Sprinter kit, designed for MY18 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Please note – not suitable for vehicles with front wheel drive.

What’s included:

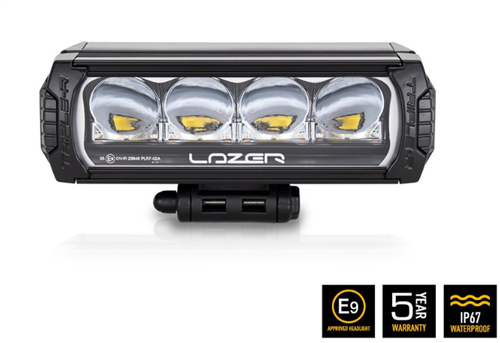

– x2 Triple-R 750 Wide High Performance LED Spotlights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)

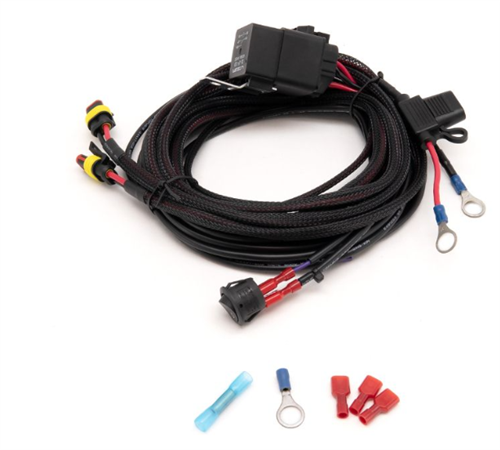

– x1 Two-Lamp Wiring Kit

Product Features

Bespoke vehicle integration kit for Lazer LED Spotlight installation

Custom fit for Mercedes Sprinter (2018+)

Designed for use with Triple-R 750 High Performance LED Spotlights

Added option for white or amber position/side light function (Standard model only)

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV-stable, ASA material

Installation completed with grille left in-situ on vehicle (cutting guides included)

Fully road-legal

5-year warranty

Made in Britain

Technical Specificaiton

2x Triple-R 750 Wide	2x Triple-R 750	2x Triple-R 750 Elite (E-Boost Mode)
Voltage Range (DC)	10-32V	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs	50,000 hrs
Weight	2 kg	2 kg	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm	9240 Lm	10136 Lm
Total Driver ‘FOV’ Flux †	5266 Lm	5572 Lm	6680 Lm
Colour Temperature	5000K	5000K	5000K
Number of High Output LEDs	2 x 4	2 x 4	2 x 4
Power Consumption	88 Watts	88 Watts	104 Watts
Current Draw (at 14.4V)	6.2 Amps	6.2 Amps	7.2 Amps
CERTIFICATION
High Beam	ECE R149	ECE R112	ECE R112
ECE Reference	20 x2	35 x2	N/A (12.5 x2 – E-Mark Mode)
Position Light (White only)	N/A	ECE R7	N/A

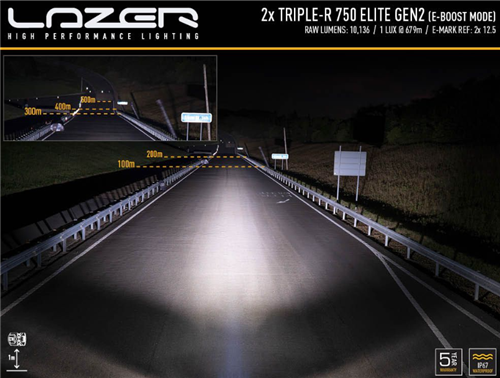

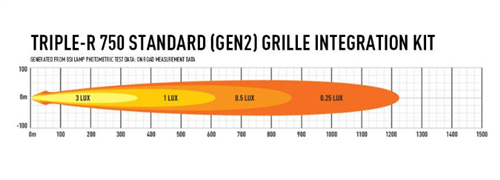

PHOTOMETRIC DATA
Horizontal Beam Angle	40o	19°	42°
0.25 lx Line	829m	1225m	1358m
0.5 lx Line	587m	866m	960m
1 lx Line	415m	612m	679m
3 lx Line	239m	354m	392m
