Description
Between 1st August to 1st January please note that this is our busy period and item will take at least 2-3 weeks to be dispatched.
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Ford Transit Connect Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Spotlight.
What’s included:
– x1 Linear-18 High Performance LED Spotlight (Standard or Elite)
– x1 Mounting Kit (comprising 2x Brackets and fasteners)
– x1 Cutting Guide (comprising 2x Brackets)
– x1 One-Lamp Wiring Kit
Product Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Ford Transit Connect (2018-2021)

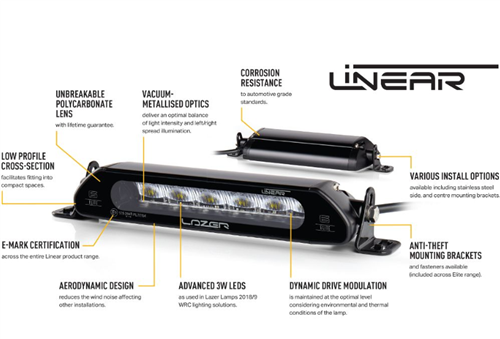

Available with: Linear-18 (Standard or Elite) LED Spotlight
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
Technical Specification
| 1x Linear-18 Elite (Double E-Mark) |
1x Linear-18 |
| Voltage Range (DC) |
10-32V |
10-32V |
| LED Life |
50,000 hours |
50,000 hours |
| Weight |
1090 gr |
1090 gr |
| HIGH BEAM FUNCTION |
|
|
| Total Luminous Flux |
13,500 Lm |
6,750 Lm |
| Total Driver ‘FOV’ Flux † |
9,612 Lm |
4,806 Lm |
| Colour Temperature |
5000K |
5000K |
| Number of High Output LEDs |
36 |
18 |
| Power Consumption |
130 Watts |
63 Watts |
| Current Draw (at 14.4V) |
9 Amps |
4.4 Amps |
| CERTIFICATION |
|
|
| High Beam |
ECE R112 |
ECE R112 |
| ECE Reference |
2×25
(2x 10 – With E-Mark Cap) |
30 |
| PHOTOMETRIC DATA |
|
|
| Horizontal Beam Angle |
64° |
56° |
| 0.25 lx Line |
1023m |
855m |
| 0.5 lx Line |
723m |
605m |
| 1 lx Line |
511m |
428m |
| 3 lx Line |
295m |
247m |
